Summit 24 in. 3.1 cu. ft. Undercounter Refrigerator - Custom Panel Ready

MODEL: ASDS2413IF

5 out of 5 Customer Rating
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 17ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
$1,758.57 Price reduced from Was $1,953.97 to
Save $195.40 (10% Off)
Low Price Guarantee
PCR Card Badge
FINANCE FOR
$147 /Month
Suggested monthly payments with 12-month special financing. Offer good through 12/04/24. Learn How
See if you prequalify or Apply Now!

BUY NOW, PAY LATER WITH . Prequalify now


Delivery & Pickup Options Delivery to 43215 Change
Freight Delivery
Special-Order Item. This may take several weeks or more to arrive. We will contact you once your order is available for delivery. $99.00
Learn More

About this Item

Overview

Summit 24" Wide Built-In All-Refrigerator, ADA Compliant (Panel Not Included)

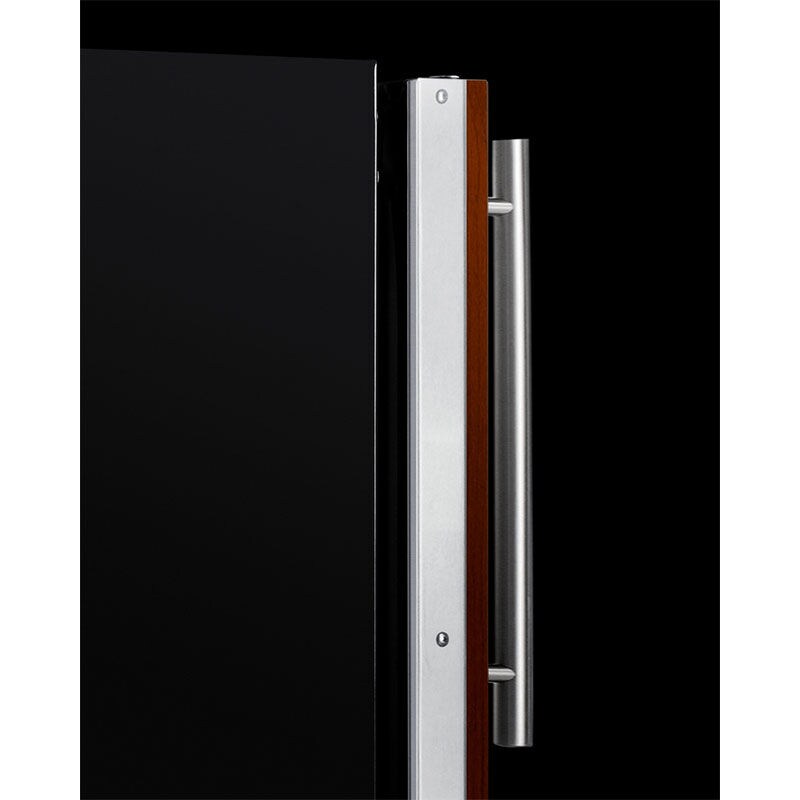

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. Model ASDS2413IF is a 24" wide all-refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. The door features a European-style fully articulating hinge for smooth opening. This also allows the door to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 28.38" H x 23.4" W; maximum weight: 10 lbs.). Note: this unit ships with a handle for optional use (not shown in image). Customers may also supply their own (as shown) to better match their existing cabinetry.

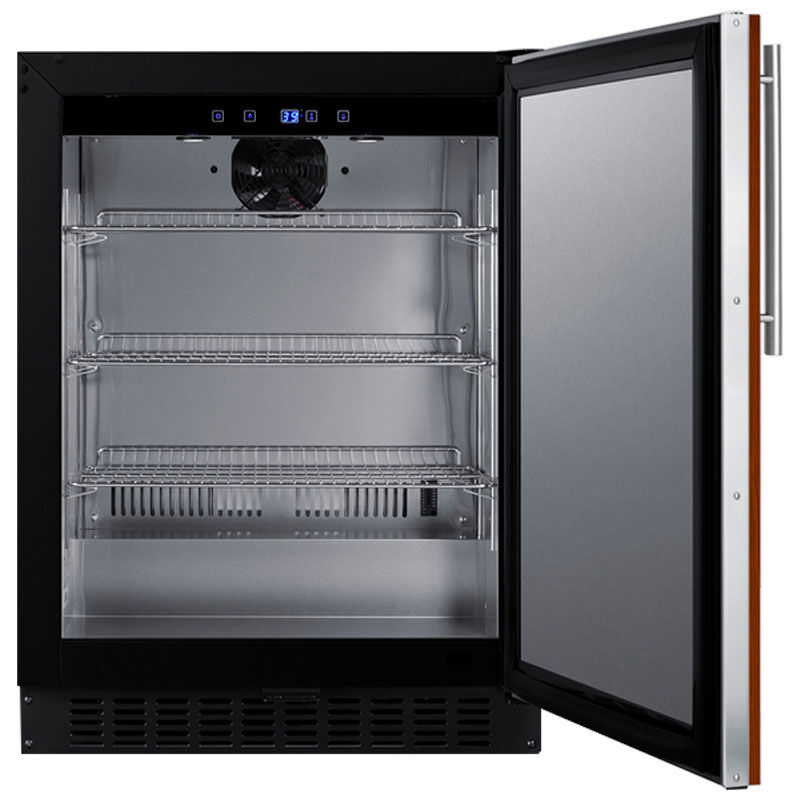

Inside, the ASDS2413IF features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes cantilevered shelving in chrome for flexible storage. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.

The ASDS2413IF refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, wine cellars, and more.

Features:

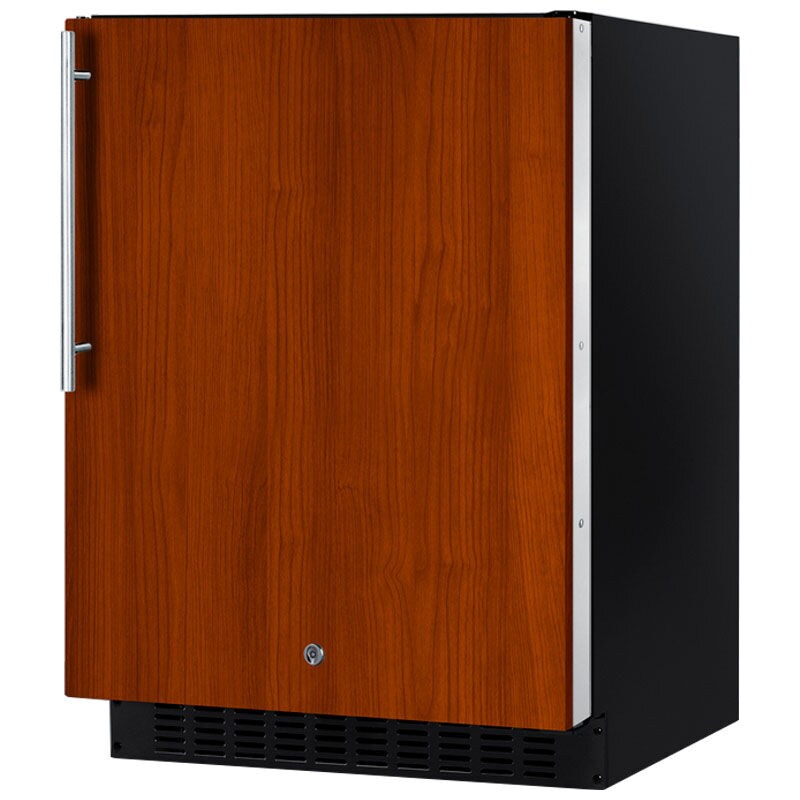

Summit 24in. wide built-in all-refrigerator, model ASDS2413IF, front-facing view
  • 32" height allows easy installation under lower ADA compliant counters
  • Front-breathing design lets you make the best use of space by installing your appliance under the counter
  • Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
Summit 24in. wide built-in all-refrigerator, model ASDS2413IF, front-facing view
  • 32" height allows easy installation under lower ADA compliant counters
  • Front-breathing design lets you make the best use of space by installing your appliance under the counter
  • Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
  • 3.1 cu.ft. interior for residential or commercial cold storage
  • Adjustable chrome shelves with stainless steel clips allow you to adjust the shelf height for the best fit
  • Efficient and attractive presentation with LED lighting that can be adjusted between three levels of brightness

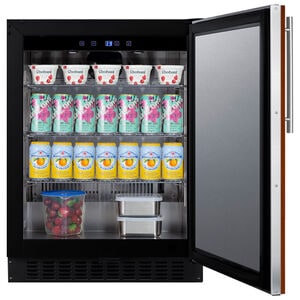

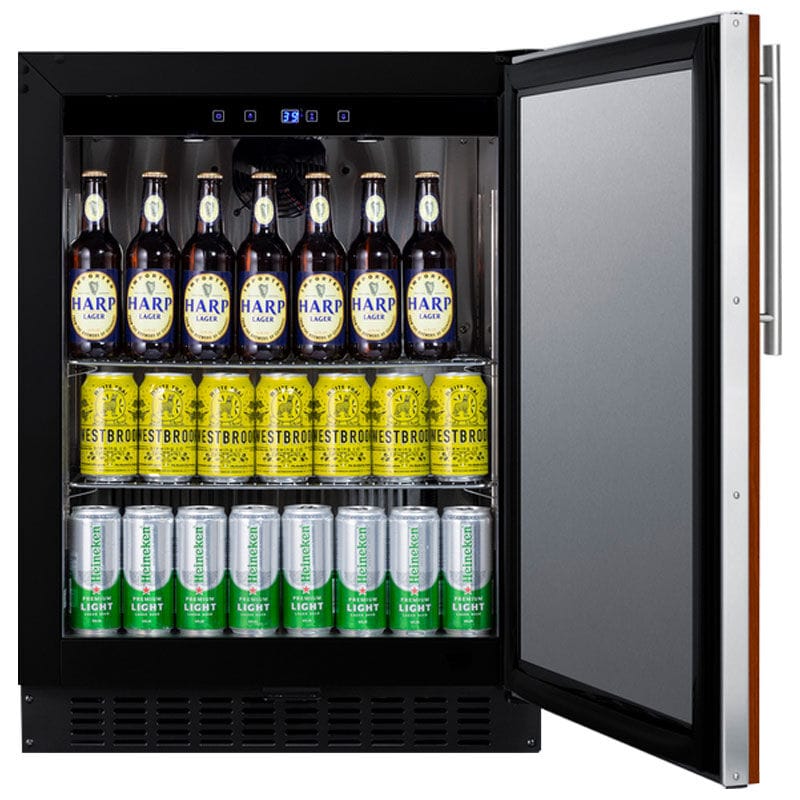

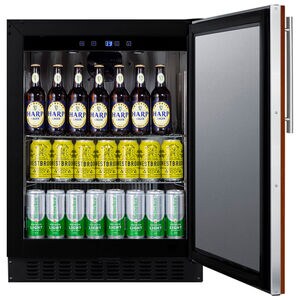

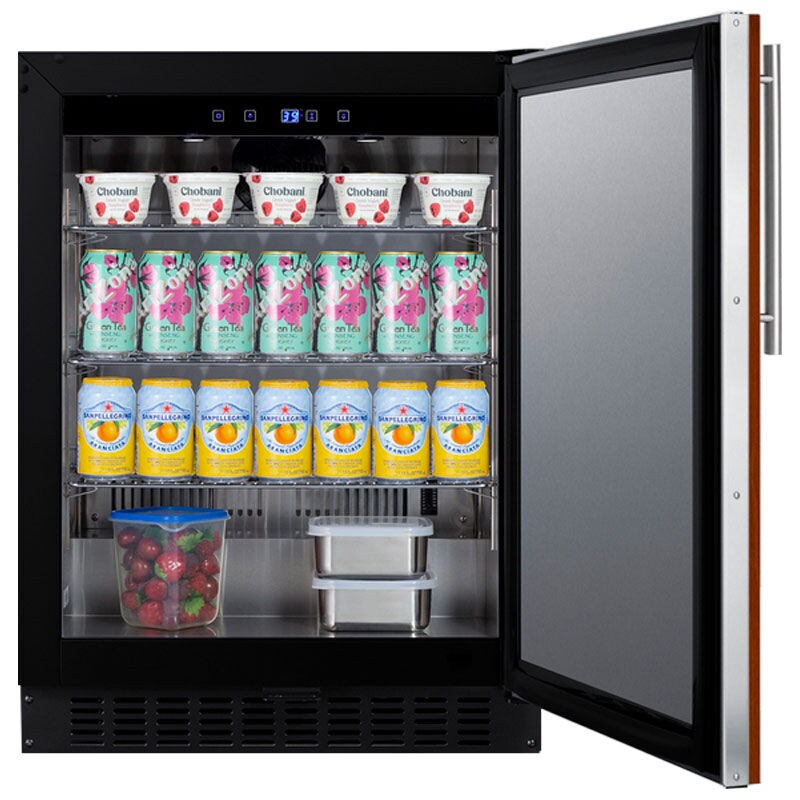

Summit 24in. wide built-in all-refrigerator, model ASDS2413IF, door open showing fully stocked interior
  • 3.1 cu.ft. interior for residential or commercial cold storage
  • Adjustable chrome shelves with stainless steel clips allow you to adjust the shelf height for the best fit
  • Efficient and attractive presentation with LED lighting that can be adjusted between three levels of brightness
Summit 24in. wide built-in all-refrigerator, model ASDS2413IF, door open showing fully stocked interior

Additional Features:

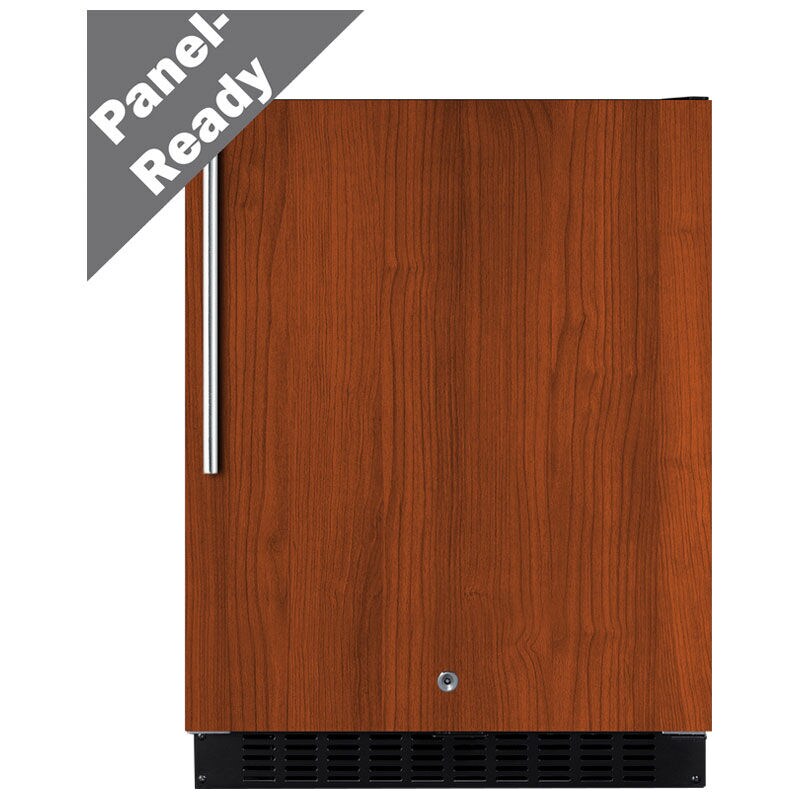

Panel-ready door lets you customize the unit for a seamless look that integrates into your kitchen

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Walls and floor are constructed from stainless steel for added strength and easy cleanup

Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button

Keyed lock for a secure interior (2 keys included)

No-frost operation for minimum user maintenance

ETL-S listed to NSF-7 Standards for use in commercial establishments

Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

High temperature alarm sounds if the unit's interior goes out of the recommended range

Uniquely shallow depth under 18" for an easy fit in kitchen islands

Stainless steel interior cabinet for lasting durability and easier cleanup

Optional setting lets you disable the lighting and alarm for up to 48 hours

Factory installed lock provides security you can count on

European style articulating door hinge allows the installation of overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 23.4" W x 28.38" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles

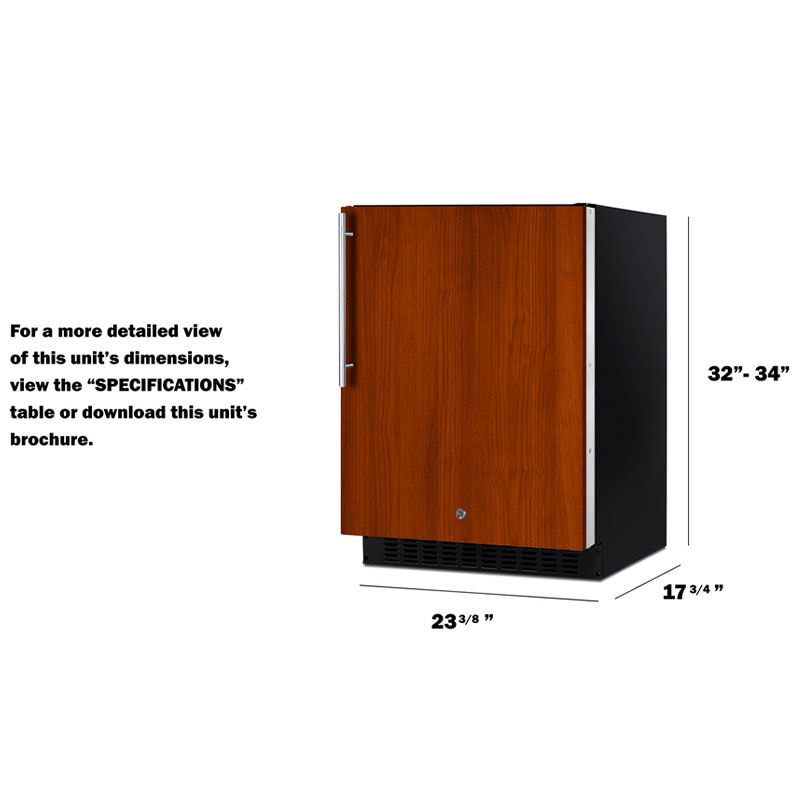

Dimensions

Product Height
32 Inches
Product Width
23.38 Inches
Product Depth
17.75 Inches
Product Weight (lbs.)
89 Lb(s)
Height To Top Of Refrigerator Cabinet (in.)
32 Inches
Height To Top Of Door Hinge (in.)
32 Inches
Depth Without Handle (in.)
18.5 Inches
Depth With Handle (in.)
-
Depth Without Door (in.)
15.88 Inches
Depth With Door Open (in.)
40 Inches
Depth with Bump-Outs [without Doors] (in.)
-

Refrigerator Details

Series
Not Applicable
Refrigerator Style
Undercounter
Refrigerator Type
Built-In/Freestanding
Refrigerator Size
Compact
Installation Depth
Counter Depth
Refrigerator Width (in.)
24
Number Of Doors
1 Door
Door Swing
Right-Hand
Reversible Door
No
Total Capacity
3.1 Cu. Ft.
Fresh Food Capacity
3.1 Cu. Ft.
Freezer Capacity
-
Color
Custom Panel Ready
Surface Finish
Not Applicable
Side Color
Black
Glass Window Door
No
Door Handle Color
Custom
Freezer Location
Not Applicable
Freezer Door Type
Not Applicable
Defrost Type
Frost Free
Lighting Type
LED
Door Lock
Yes
Hidden Hinges
Yes
Other Features
-
Garage Ready
No
Fingerprint Resistance
No
General Features
ADA Compliant, Frost Free, Sabbath Mode

Ice/Water Dispenser Details

Dispenser Color
-
Filtered Ice
Not Applicable
Hot Water Dispenser
No
Ice Maker
Not Applicable
Ice Maker Location
Not Applicable
Secondary Built-In Ice Maker
No
Ice Cube Style
-

Fresh Food Storage&Freezer Storage

Dairy Center
No
Gallon Door Storage
No
Soda Can Organizer
No
Wine Storage Rack
No
Door-In-Door Feature
No
Total Number of Refrigerator Shelves
3 Shelf/Shelves
Interior Shelf Material
Metal
Number of Adjustable Shelves
3 Shelf/Shelves
Cantilever Shelves
Yes
Number of Spill Safe Shelves
No
Number of Refrigerator Drawers
-
Number of Refrigerators Door Bins
-
Freezer Shelves
-
Number of Freezer Storage Bins/Baskets
-
Convertible Refrigerator/Freezer Compartment
No
External Drawers
-

Smart Features

WiFi Connected
No
Smart Features
-
Works with
-

Settings and Controls

Temperature Control Type
Digital
Motion Activated Controls
No
Door Ajar Alert
Yes
Sabbath Mode
Yes

Technical Details

Voltage (V)
115 Volts
Amperage (A)
1 Ampere
Wattage (W)
-
Power Cord Length (Ft.)
6 Feet
Approved for Medical Use
No
Approved for Outdoor Use
No
Approved for Commercial Use
-
Dual Evaporator/Compressor
No
Air Filter
No
Leveling Legs
Yes
Rollers
No
Refrigerant Type
R600a

Accessory Details

Accessories Included
2 keys included
Replacement Water Filter Model
-
Replacement Air Filter Model
-
Optional Added Ice Maker Model Number
-

Certifications

ADA Compliant
Yes
ANSI Certified
No
CSA Listed
No
ETL Listed
Yes
NSF Listed
Yes
UL Listed
No
CEE Qualified
No
CFC Free
Yes

Energy Info

Energy Star Rated
No

Manufacturer Warranty

Warranty Terms - Parts
12 Month(s)
Warranty Terms - Labor
12 Month(s)
No. of Months for Mfr Sealed System Warranty
60

Prop 65 - CA Residents

Prop 65
Warning
CALIFORNIA RESIDENTS ONLY - WARNING: WARNING: This product can expose you to chemicals including nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov Note: Nickel is a component in all stainless steel and other metallic compositions www.P65Warnings.ca.gov
