Summit 24 in. 4.8 cu. ft. Undercounter Refrigerator - Custom Panel Ready

MODEL: AL54IF

5 out of 5 Customer Rating
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 19ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
$1,433.67 Price reduced from Was $1,592.97 to
Save $159.30 (10% Off)
Low Price Guarantee
PCR Card Badge
FINANCE FOR
$120 /Month
Suggested monthly payments with 12-month special financing. Offer good through 12/04/24. Learn How
See if you prequalify or Apply Now!

BUY NOW, PAY LATER WITH . Prequalify now


Delivery & Pickup Options Delivery to 43215 Change
Freight Delivery
Special-Order Item. This may take several weeks or more to arrive. We will contact you once your order is available for delivery. $99.00
Learn More

About this Item

Overview

24" Wide Built-In All-Refrigerator, ADA Compliant (Panel Not Included)

SUMMIT's AL54 series features built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience.

Sized with a convenient 24" footprint, the AL54IF is just 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished black cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. The door features a European-style fully articulating hinge for smooth opening. This also allows the door to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 28.38" H x 23.4" W; maximum weight: 10 lbs.). This unit has a flush back for easy cleaning and a right angle plug for a better fit.

The AL54IF refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style and user-friendly features, this unit is the perfect choice for home or commercial kitchens. Additional styles are available, as well a matching frost-free freezer (model ALFZ53IF). Browse the full Summit line to explore your endless options.

Features:

Summit 24in. Undercounter Refrigerator, model AL54IF, front facing view
ADA compliant design
32" height allows easy installation under lower ADA compliant counters

Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter

Panel-ready door
European style articulating door hinge allows the installation of overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; (panel size: 23.4" W x 28.38" H at 3/4" thick and 10 lbs. maximum)

Summit 24in. Undercounter Refrigerator, model AL54IF, front facing view
ADA compliant design
32" height allows easy installation under lower ADA compliant counters

Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter

Panel-ready door
European style articulating door hinge allows the installation of overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; (panel size: 23.4" W x 28.38" H at 3/4" thick and 10 lbs. maximum)

Adjustable glass shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Door storage
Two door racks offer convenient storage for condiments and bottles

Bottle slots
Floor is specially slotted to store wine and other bottles safely in place

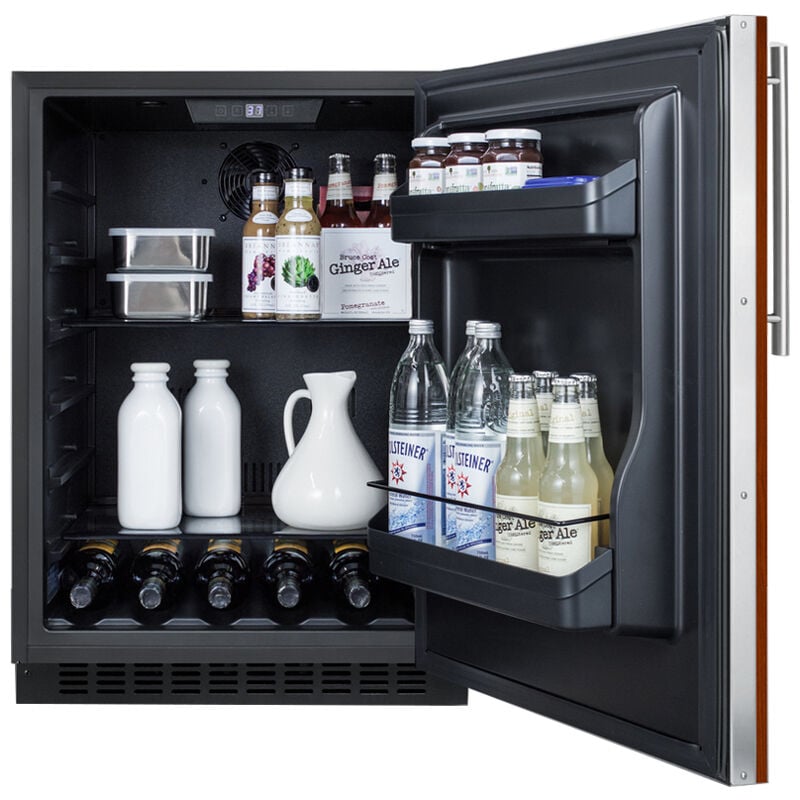

Summit 24in. Undercounter Refrigerator, model AL54IF, door open showing fully stacked refrigerator
Adjustable glass shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Door storage
Two door racks offer convenient storage for condiments and bottles

Bottle slots
Floor is specially slotted to store wine and other bottles safely in place

Summit 24in. Undercounter Refrigerator, model AL54IF, door open showing fully stacked refrigerator

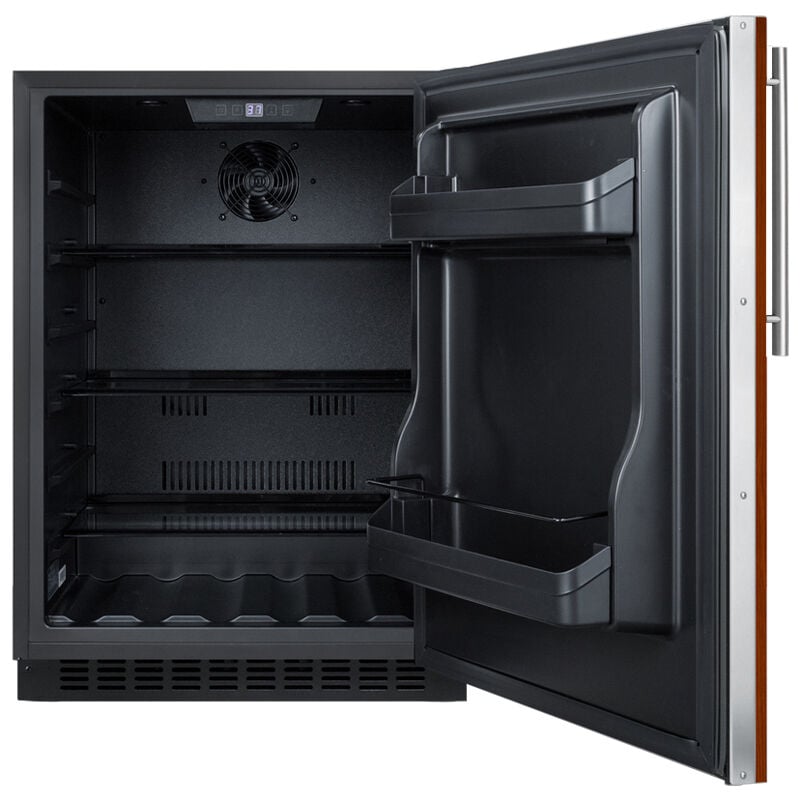

Summit 24in. Undercounter Refrigerator, model AL54IF, door open showing empty interior
Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Open door alarm
Audible alarm will sound if the door is left open longer than one minute

High temperature alarm
High temperature alarm sounds if the unit's interior goes out of the recommended range

Summit 24in. Undercounter Refrigerator, model AL54IF, door open showing empty interior
Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Open door alarm
Audible alarm will sound if the door is left open longer than one minute

High temperature alarm
High temperature alarm sounds if the unit's interior goes out of the recommended range

Fully finished cabinet
Allows the unit to be used freestanding

Sealed back
Space-saving design that offers easier cleanability

Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

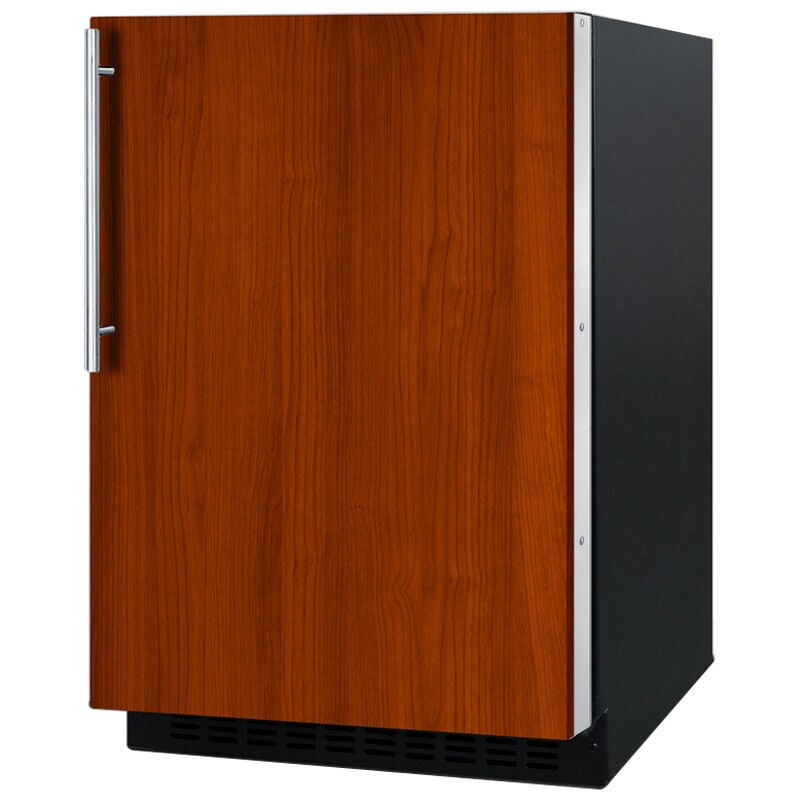

Summit 24in. Undercounter Refrigerator, model AL54IF, left angled view from front
Fully finished cabinet
Allows the unit to be used freestanding

Sealed back
Space-saving design that offers easier cleanability

Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Summit 24in. Undercounter Refrigerator, model AL54IF, left angled view from front

Additional Features:

Matching freezer
Pair with the ALFZ53IF frost-free freezer to create a complete refrigerator/freezer set under the counter

Frost-free operation
No-frost operation for minimum user maintenance

Digital thermostat
Electronic controls located inside the unit for precise temperature management

Recessed LED light
Efficient and attractive presentation with LED lighting

Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 48 hours

Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss

Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments

100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Dimensions

Product Height
32.25 Inches
Product Width
23.63 Inches
Product Depth
23.75 Inches
Product Weight (lbs.)
100 Lb(s)
Height To Top Of Refrigerator Cabinet (in.)
32 Inches
Height To Top Of Door Hinge (in.)
32.25 Inches
Depth Without Handle (in.)
-
Depth With Handle (in.)
-
Depth Without Door (in.)
-
Depth With Door Open (in.)
-
Depth with Bump-Outs [without Doors] (in.)
-

Refrigerator Details

Series
Not Applicable
Refrigerator Style
Undercounter
Refrigerator Type
Built-In/Freestanding
Refrigerator Size
Compact
Installation Depth
Counter Depth
Refrigerator Width (in.)
24
Number Of Doors
1 Door
Door Swing
Right-Hand
Reversible Door
No
Total Capacity
4.8 Cu. Ft.
Fresh Food Capacity
4.8 Cu. Ft.
Freezer Capacity
-
Color
Custom Panel Ready
Surface Finish
Not Applicable
Side Color
Black
Glass Window Door
No
Door Handle Color
Custom
Freezer Location
Not Applicable
Freezer Door Type
Not Applicable
Defrost Type
Frost Free
Lighting Type
LED
Door Lock
No
Hidden Hinges
No
Other Features
-
Garage Ready
No
Fingerprint Resistance
No
General Features
ADA Compliant, Frost Free, Sabbath Mode

Ice/Water Dispenser Details

Dispenser Color
Not Applicable
Filtered Ice
No
Hot Water Dispenser
No
Ice Maker
Not Applicable
Ice Maker Location
Not Applicable
Secondary Built-In Ice Maker
No
Ice Cube Style
-

Fresh Food Storage&Freezer Storage

Dairy Center
No
Gallon Door Storage
-
Soda Can Organizer
No
Wine Storage Rack
Yes
Door-In-Door Feature
No
Total Number of Refrigerator Shelves
3 Shelf/Shelves
Interior Shelf Material
Glass
Number of Adjustable Shelves
3 Shelf/Shelves
Cantilever Shelves
No
Number of Spill Safe Shelves
Yes
Number of Refrigerator Drawers
-
Number of Refrigerators Door Bins
2
Freezer Shelves
-
Number of Freezer Storage Bins/Baskets
-
Convertible Refrigerator/Freezer Compartment
No
External Drawers
-

Smart Features

WiFi Connected
No
Smart Features
-
Works with
-

Settings and Controls

Temperature Control Type
Digital
Motion Activated Controls
No
Door Ajar Alert
Yes
Sabbath Mode
Yes

Technical Details

Voltage (V)
115 Volts
Amperage (A)
1 Ampere
Wattage (W)
-
Power Cord Length (Ft.)
-
Approved for Medical Use
No
Approved for Outdoor Use
No
Approved for Commercial Use
-
Dual Evaporator/Compressor
No
Air Filter
No
Leveling Legs
Yes
Rollers
No
Refrigerant Type
R600a

Accessory Details

Accessories Included
-
Replacement Water Filter Model
-
Replacement Air Filter Model
-
Optional Added Ice Maker Model Number
-

Certifications

ADA Compliant
Yes
ANSI Certified
No
CSA Listed
No
ETL Listed
Yes
NSF Listed
Yes
UL Listed
No
CEE Qualified
No
CFC Free
Yes

Energy Info

Energy Star Rated
No

Manufacturer Warranty

Warranty Terms - Parts
12 Month(s)
Warranty Terms - Labor
12 Month(s)
No. of Months for Mfr Sealed System Warranty
60
