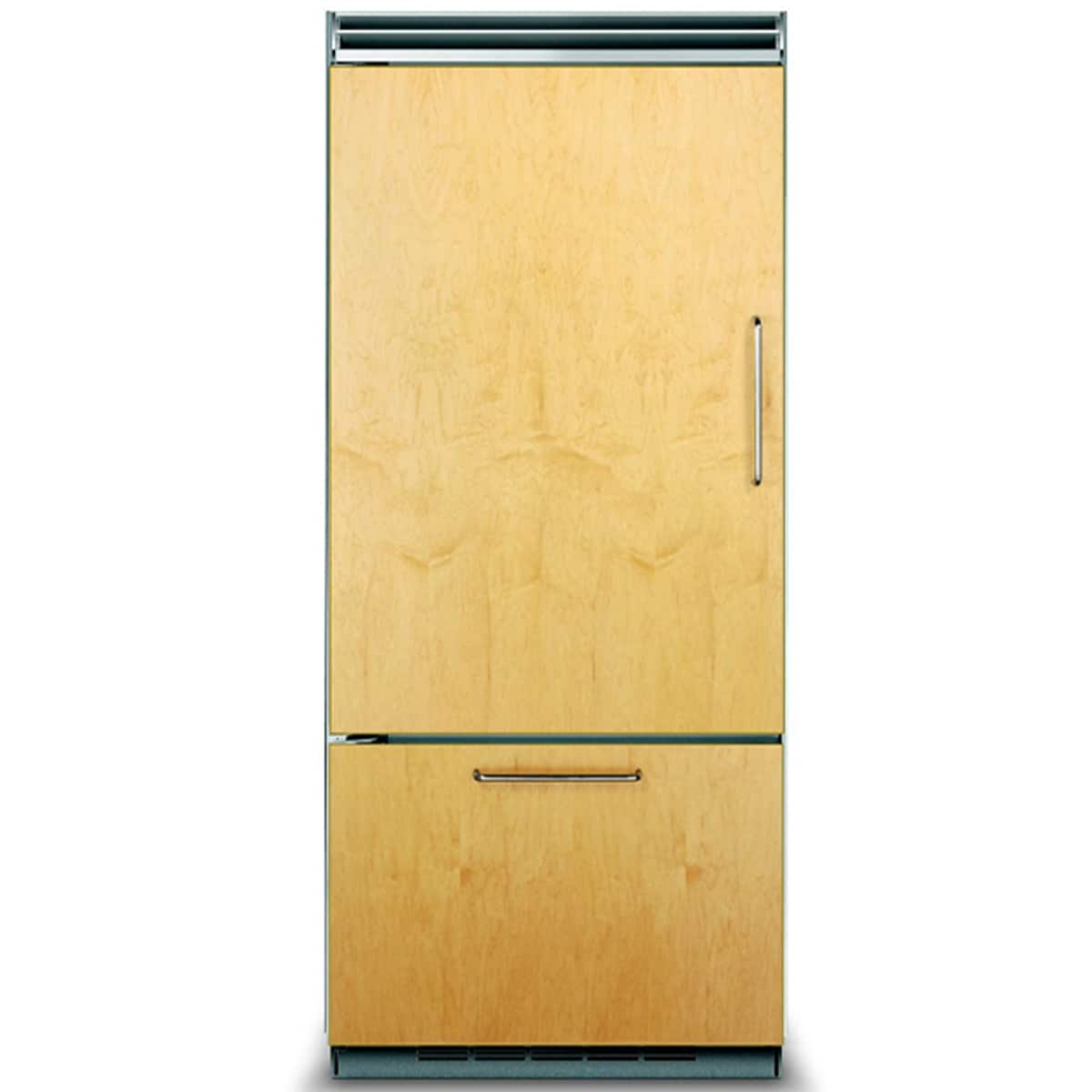

Viking 5 Series 36 in. 20.4 cu. ft. Built-In Counter Depth Bottom Freezer Refrigerator with Ice Maker - Custom Panel Ready
Key Features
- Refrigerator Type: Built-In
- Refrigerator Width (in.): 36
- Installation Depth: Counter Depth
View Details
or
$1877/Month
Suggested monthly payments with 6-month special financing. Offer good through 12/31/25.
Show Me How
BUY NOW, PAY LATER WITH Affirm . See if you qualify
This product is limited to the local P.C. Richard & Son delivery area only and is not available in your area.
Delivery & Pickup Options

Viking 5 Series 36 in. 20.4 cu. ft. Built-In Counter Depth Bottom Freezer Refrigerator with Ice Maker - Custom Panel Ready
$11,259.98
About this Item
Overview
BUILT-IN 36"W. BOTTOM-FREEZER
Features:
PROCHILL TEMPERATURE MANAGEMENT SYSTEM
- ENERGY STAR Qualified
- Variable Speed DC Overdrive Compressor quickly chills food and saves energy
- Single compressor system is one of the quietest, most technologically advanced compressors available

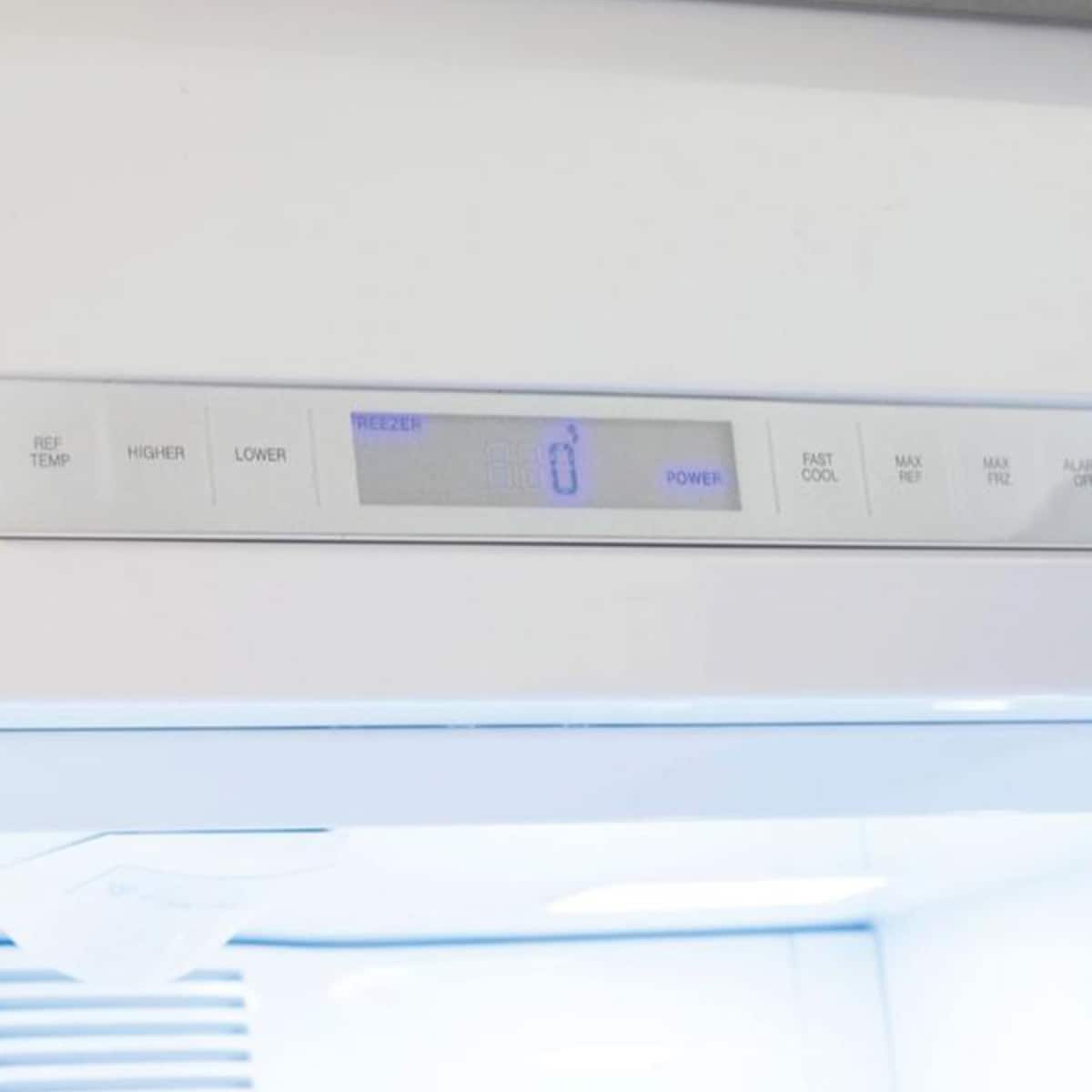

- Electronic controls maintain even temperatures within one degree °F to keep food fresher longer
- Odor Eliminator Evaporator removes odors and excess humidity
- Maintenance-free Super Clog Resistant Condenser prevents dust and other airborne particles from clogging the condenser
FILTER-FREE FRESHNESS

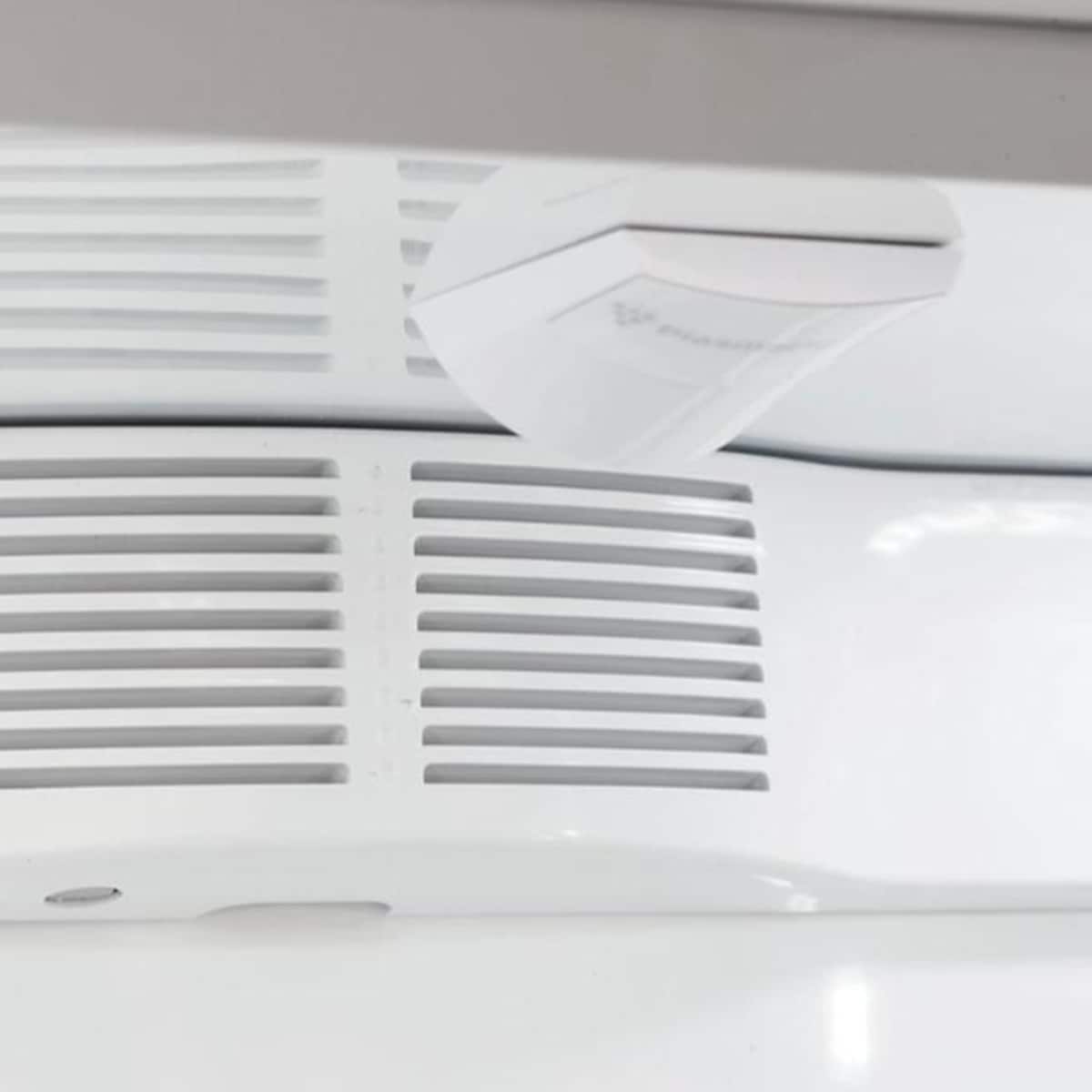

- EXCLUSIVE Plasmacluster Ion Air Purifier uses advanced ion technology to eliminate airborne bacteria, mold, and odors to enhance food preservation
- Functions at 100% capacity and never degrades, never needs replacing, and no maintenance is ever required
LED LIGHTING
- All items are in clear view with bright energy efficient LED lighting from top and sidewalls
- Ramp on theater lighting provides better visibility
SPECIALIZED REFRIGERATION STORAGE
- Two adjustable Humidity Zone Drawers with NEW soft-close slides
- Humidity can be set high for leafy greens or low for fruits and vegetables with skins
- Two deli drawers with soft-close slides
- Additional space for large pizza box storage
- Two in-the-door dairy compartments with covers
- Four Patented (three are adjustable) aluminum door bins securely store heavy items
- Seamless glass shelves make cleanup easy and maximize usable space
- Adjustable door stops - 90, 110 and 120 degrees
SPECIALIZED FREEZER STORAGE
- Full-extension main freezer compartment pulls out like a drawer for easy access to bulky frozen foods
- Opens quietly and easily, with ball-bearing rollers which glide on a steel track
- Positive self-closing feature ensures a good seal
- Upper freezer basket slides independently of main freezer compartment; ideal for fragile or frequently used items
- Adaptive defrost controls the timing of the defrost periods, instead of an electromechanical defrost timer
- Extends to 96 hours - improves food storage because the unit defrosts less often
- Factory-installed automatic ice maker features large-capacity ice bucket
- Door alarm sounds and glows to warn that fresh food door and/ or freezer drawer have been ajar for three minutes, and that the temperature has risen above normal operating range
Specifications
Manuals & Guides, Dimensions, Refrigerator Details, Ice/Water Dispenser Details...
Manuals & Guides
Dimensions
Product Height
82.75 Inches
Product Width
36 Inches
Product Depth
24 Inches
Product Weight (lbs.)
-
Height To Top Of Refrigerator Cabinet (in.)
82.75 Inches
Height To Top Of Door Hinge (in.)
-
Depth Without Handle (in.)
24 Inches
Depth With Handle (in.)
-
Depth Without Door (in.)
-
Depth With Door Open (in.)
-
Depth with Bump-Outs [without Doors] (in.)
-
Refrigerator Details
Series
5 Series
Refrigerator Style
Bottom Freezer
Refrigerator Type
Built-In
Refrigerator Size
Full-Size
Installation Depth
Counter Depth
Refrigerator Width (in.)
36
Number Of Doors
2 Doors
Door Swing
Left-Hand
Reversible Door
No
Total Capacity
20.4 Cu. Ft.
Fresh Food Capacity
15.3 Cu. Ft.
Freezer Capacity
5.1 Cu. Ft.
Color
Custom Panel Ready
Surface Finish
Textured
Side Color
-
Glass Window Door
No
Door Handle Color
Custom
Freezer Location
Bottom
Freezer Door Type
Pull Out Drawer
Defrost Type
Automatic
Lighting Type
LED
Door Lock
No
Hidden Hinges
Yes
Other Features
-
Garage Ready
No
Fingerprint Resistance
No
General Features
Ice Maker, Sabbath Mode
Ice/Water Dispenser Details
Dispenser Color
Not Applicable
Filtered Ice
-
Hot Water Dispenser
No
Ice Maker
Factory Installed
Ice Maker Location
Freezer
Secondary Built-In Ice Maker
No
Ice Cube Style
-
Fresh Food Storage&Freezer Storage
Dairy Center
Yes
Deli Drawer/Meat Storage Bin
Standard Deli Drawer
Gallon Door Storage
-
Soda Can Organizer
No
Wine Storage Rack
No
Door-In-Door Feature
No
Total Number of Refrigerator Shelves
-
Interior Shelf Material
Glass
Number of Adjustable Shelves
-
Cantilever Shelves
-
Number of Spill Safe Shelves
Yes
Number of Refrigerator Drawers
4
Number of Refrigerators Door Bins
-
Freezer Shelves
-
Number of Freezer Storage Bins/Baskets
-
Convertible Refrigerator/Freezer Compartment
No
External Drawers
1 Freezer Drawer
Smart Features
WiFi Connected
No
Smart Features
-
Works with
-
Settings and Controls
Temperature Control Type
Digital
Motion Activated Controls
No
Door Ajar Alert
Yes
Sabbath Mode
Yes
Technical Details
Voltage (V)
115 Volts
Amperage (A)
15 Ampere
Wattage (W)
-
Power Cord Length (Ft.)
-
Approved for Medical Use
No
Approved for Outdoor Use
No
Approved for Commercial Use
No
Dual Evaporator/Compressor
No
Air Filter
-
Leveling Legs
-
Rollers
-
Refrigerant Type
R600a
Accessory Details
Accessories Included
-
Replacement Water Filter Model
-
Replacement Air Filter Model
-
Optional Added Ice Maker Model Number
-
Certifications
ADA Compliant
No
ANSI Certified
No
CSA Listed
No
ETL Listed
No
NSF Listed
No
UL Listed
Yes
CEE Qualified
No
CFC Free
Yes
Energy Info
Energy Star Rated
No
Manufacturer Warranty
Warranty Terms - Parts
24 Month(s)
Warranty Terms - Labor
24 Month(s)
No. of Months for Mfr Sealed System Warranty
72
